Laminated or lacquer finish can be done in the factory
Standard size prefabricate module production in the factory
Splicing tenon installation; Dry construction
The core is indepenly for fire-resistant and sound insulation which is of sstable performance and structure. It’s economical and recyclable after disassembling.
DANSN, as the editor in chief, complied jointly with China Academy of Building Research the industrial standards for pre-laminate & pre-fabricated partition walls guided by China Association for Standardization.
The acoustic insulation of 75mm laminated partition wall reach the Grade A+ standard (40dB) between exterior and rooms and Grade A standard (40dB) between hallways and rooms specified in China's Specifications for the Design of Sound Insulation in Civilian Structure (GB50118-2010).
The acoustic insulation of 90mm laminated partition wall reach the Grade A standard (45dB) between rooms and rooms in hotel buildings specified in China's Specifications for the Design of Acoustic Insulation in Civilian Structure (GB50118-2010).
The laminated partition wall resists fire for 2 hours
75mm laminated partition wall resists sound of 40dB
90mm laminated partition wall resists sound of 45dB
One worker in average can complete 12 to 15m² working face per day.
Compared with traditional plasterboards, pre-fabricated partitions of 75mm and 90mm in thickness reduce the thickness of walls by 40% to 50%, and expand the usable area by 4% to 6%.
Formaldehyde-free, DANSN's laminated partition wall meets the requirements of American CARB-NAF (no-added formaldehyde based resin) certification, the world's highest formaldehyde-free standard, and use human-harmless materials.
When using 120mm brick masonries (of 180mm in thickness after plastering on both sides) as the inner wall, the wall covers 9.7% of the floor area with 90.3m² usable area finally.
When using 75mm DANSN laminated partition wall (without plastering or painting), the wall covers only 4.26% of the floor area with 95.7m² usable area finally.

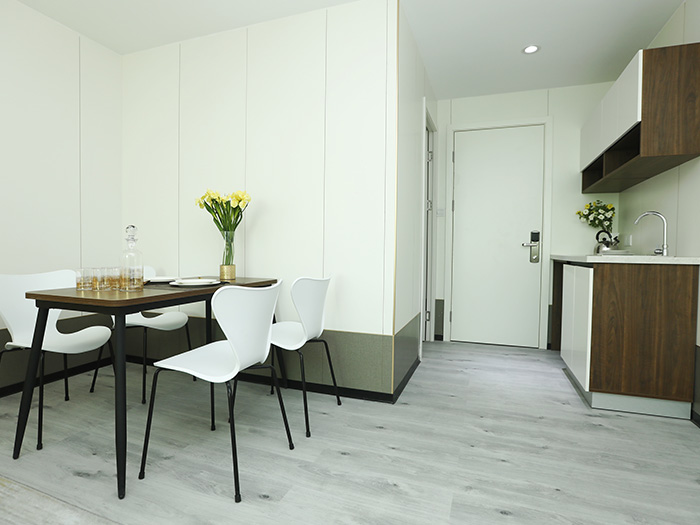

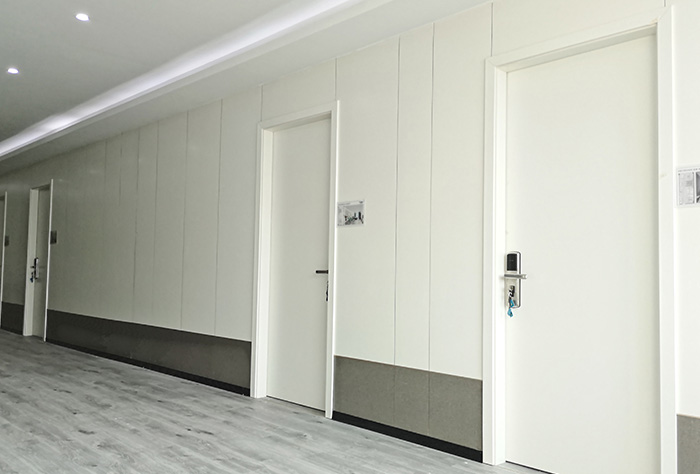

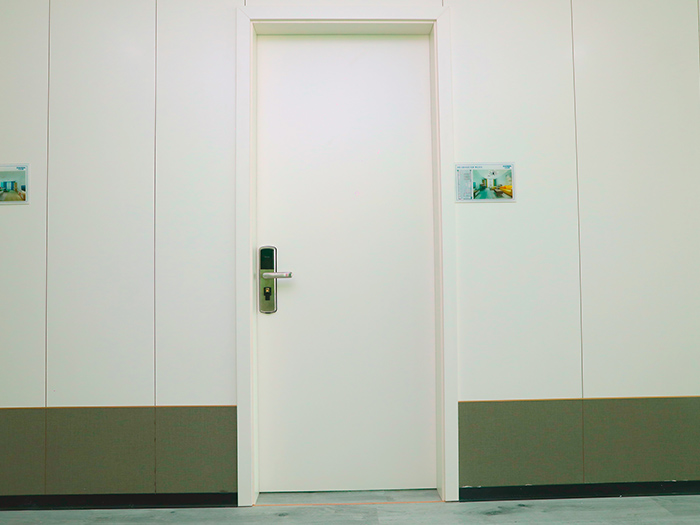

Upper and lower walls with contrast colors

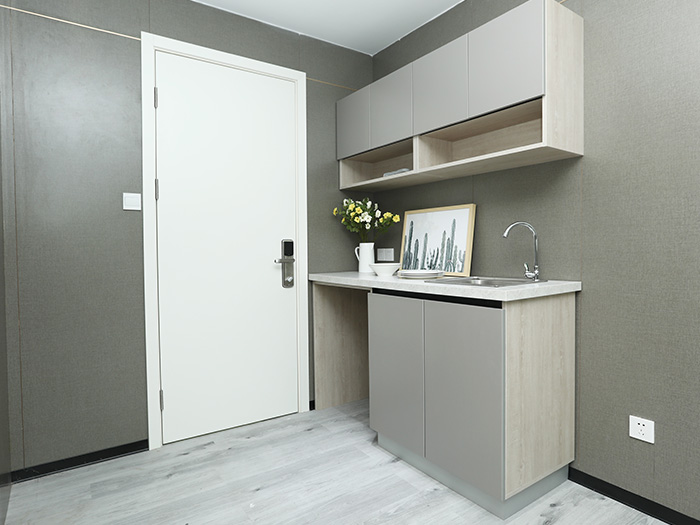

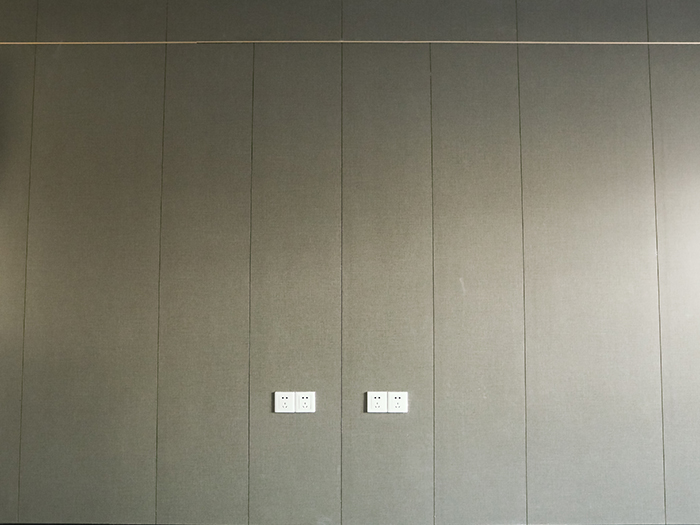

Upper and lower walls with the same color

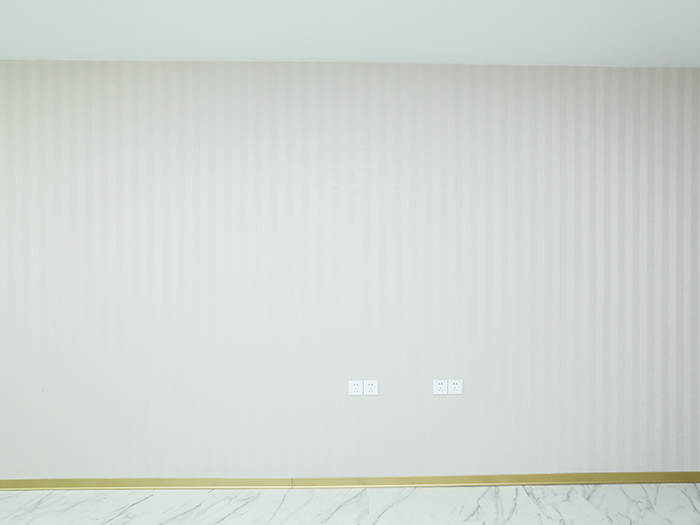

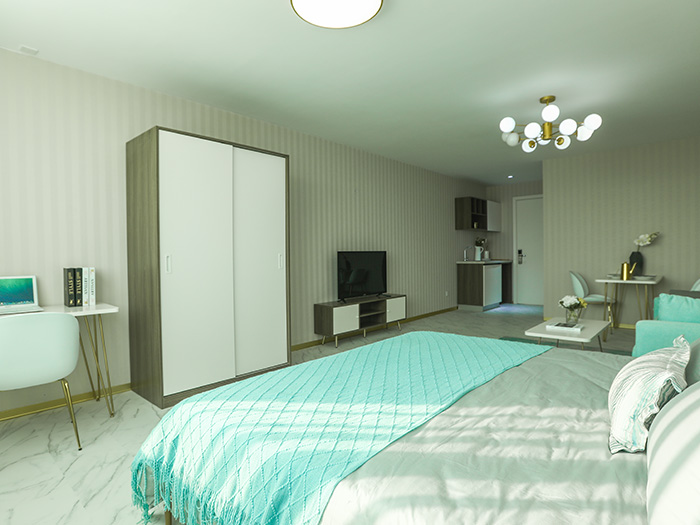

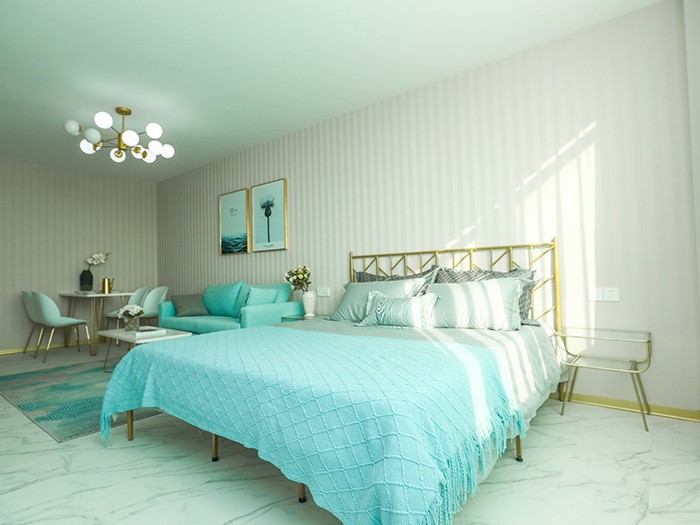

Wallpaper on the surface
